19 inch Fully Redundant ADS-B Ground Station ADSB-GS1090-2

Introduction

ADSB-GS1090-2 is a fully redundant ADS-B ground station equipped with dual independent ADS-B receivers. It features two ADS-B antennas and two GPS antennas, ensuring reliable operation in various conditions. Designed for high performance and ease of use, ADSB-GS1090-2 comes in a standard 19" 2U form factor, suitable for existing or new rack installations. The dual ADS-B receiver setup, developed by two independent teams, enhances redundancy, stability, and bug resistance, making ADSB-GS1090-2 a robust and dependable solution for aircraft tracking and surveillance..

19” Fully Redundant ADS-B Ground Station ADSB-GS1090-2

19 inch Fully Redundant ADS-B Ground Station ADSB-GS1090-2

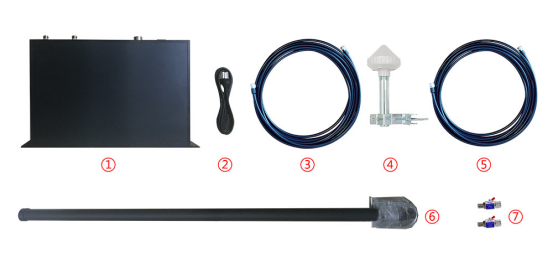

 ADSB-GS1090-2 package includes:
①、ADSB-GS1090-2 unit *1
②、Power *1
③、GPS antenna cable 10 meters *2 (please specify if you need a longer cable)
④、GPS antenna with clamp *2
⑤、ADS-B antenna cable 10 meters *2 (please specify if you need a longer cable)
⑥、ADS-B antenna clamp *2
⑦、ADS-B antenna *2
Note: In pictures, ③-⑦ are depicted as a single set for ease of display. However, please be aware that the equipment is actually delivered with two sets of these items.

19 inch Fully Redundant ADS-B Ground Station ADSB-GS1090-2



Functions

Data Formats

1. ADSB-GS1090-2 can output ADS-B messages via network cables in different data format. Including CSV plaintext (decoded data, you can easily get longitude, latitude, altitude, speed, flight ID…), Asterix Cat021, json (also decoded data), DF17/18 raw messages and AVR.
2. ADSB-GS1090-2 can also receive and output Mode-S messages and Mode A/C messages.
3. ADSB-GS1090-2 can output data with GPS timestamp.

Functions for your convenience

1. ADSB-GS1090-2 can be connected via network cables.
2. ADSB-GS1090-2 supports static IP address and DHCP.
3. ADSB-GS1090-2 IP address can be configured for direct connection with a computer without the need for routers. However, ADSB-GS1090-2 can also be configured to connect with a computer via routers, offering flexibility based on your setup preferences.
4. A single ADSB-GS1090-2 unit can transmit ADS-B data to multiple clients simultaneously, enabling efficient data distribution across multiple devices or systems.
5. ADSB-GS1090-2 is standard 19″ 2U inserts for existing or new racks.
6. Work with ADS-B display software adsbscope.



Specifications

Frequency

1090MHz

Sensitivity

better than -93dbm

Coverage

>350 km

Power Supply

220V

Physical Size

43*30*8.9 cm (not include antenna connectors and handle)

Antenna Connector

N/F



Optional

1. Dual redundant power supply.
2. ADS-B antenna, GPS antenna and network surge protectors.
3. Seawater resistant ADS-B antenna for off-shore use.
4. ATC display software, ADS-B data analysis software, ADS-B and radar coverage evaluation software.
5. OEM/Customization. All our products can be supplied fully customized with your brand and logo. We can even do customized form factors, enclosures and packages, functions and data formats on your requirement. This OEM/Customization service enables you to have your own unique product in minimal time with no risk.
6. IQ data output and storage. We can output and storage IQ data for your analysis.



Unique applications

Unique applications frequently necessitate specialized features or accessories that standard ADS-B ground stations on the market may not support. Beyond conventional ADS-B applications, our ADS-B ground station solution offers customizable options with additional accessories designed to effectively address these distinct requirements.

1. Off-shore use, with optional seawater resistant ADS-B Antenna.
2. On ship, with optional seawater resistant ADS-B Antenna.
3. Areas that have a lot of thunders, with optional ADS-B antenna, GPS antenna and network surge protectors.



Antenna

· Omnidirectional

· Frequency: 1060-1120MHz

· Bandwidth: 60MHz

· Gain: 6 dBi

· VSWR: <1.5

· Impedance: 50 ohms

· Polarization: Vertical

· Length: 60 cm

· Weight (Without mast clamp): 360 g

· Weight (With mast clamp): 510 g

· Connector: N Female

· Operating Temperature: -40 to +85 degrees

· Rated Wind Velocity: 60 m/s
