Introduction |

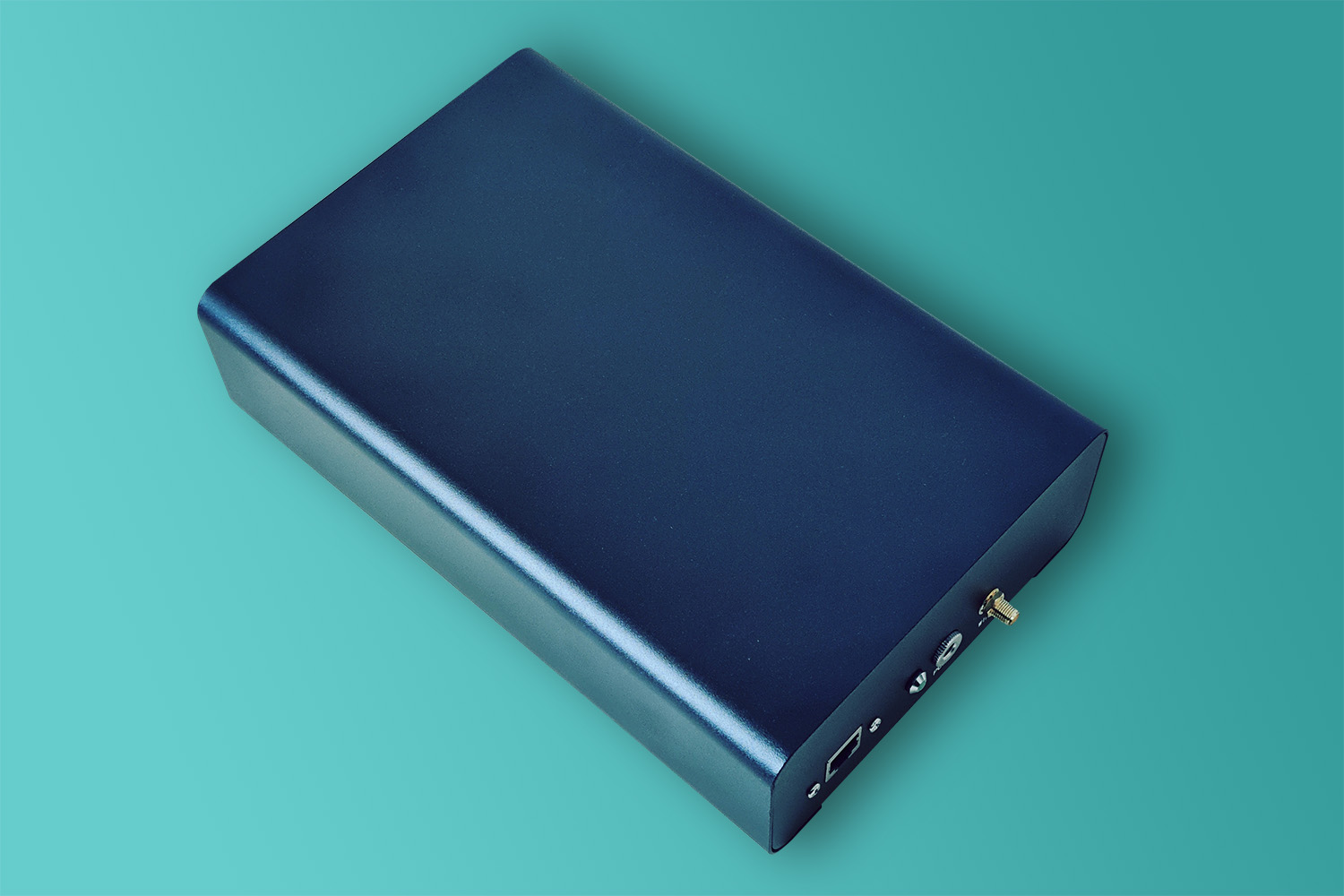

NWD-01 is a high-performance, portable, and user-friendly AIS ground receiver, offering both network and WiFi connectivity options. the integrated AIS decoder allows NWD-01 to output decoded AIS data, significantly reducing the effort required for customers to decode AIS messages.
![Network AIS Receiver NWD-01 with WiFi+decode Network AIS Receiver NWD-01 with WiFi+decode](//static.avionix-tech.com/statics/cms/2023-10-26/cwieuyxfvegwnnydlv.jpg)
|
NWD-01 includes:
①、NWD-01 unit *1 ②、Power *1 ③、WiFi antenna *1 ④、AIS antenna cable 10 meters *1 (please specify if you need longer cable) ⑤、AIS antenna with clamp *1
|
![Network AIS Receiver NWD-01 with WiFi+decode Network AIS Receiver NWD-01 with WiFi+decode](//static.avionix-tech.com/statics/cms/2024-06-20/d24o7vk6xr72husmh7.jpg) ![Network AIS Receiver NWD-01 with WiFi+decode Network AIS Receiver NWD-01 with WiFi+decode](//static.avionix-tech.com/statics/cms/2024-06-20/d24o87l7m4evmauo9m.jpg) |
Functions |
● NWD-01 offers connectivity options via both network cables and WiFi for data output. ● NWD-01 provides the convenience of outputting both standard AIS messages and decoded AIS data, eliminating the need for customers to decode AIS messages themselves. ● NWD-01 is capable of outputting standard AIS messages and decoded AIS data. ● Small in size and light in weight, NWD-01 is highly portable and can easily fit into a backpack. It can be powered by a 12V rechargeable battery, making it ideal for on-the-go use. ● NWD-01's IP address can be configured to enable direct connection with a computer without the need for routers. However, it can also be configured to connect with a computer via routers, providing flexibility according to user preference. ● NWD-01 supports both static IP address assignment and DHCP configuration. ● Compatible with OpenCPN software, ensuring seamless integration and compatibility for users.
|
Specifications |
Frequency
|
161.975/162.025 MHz
|
Sensitivity
|
better than -112 dbm
|
Dynamics
|
-112dbm to +10dbm
|
Power Supply
|
DC 12V, 2A
|
Power Consumption
|
less than 10W
|
Physical Size
|
24.1*15.3*6.5 cm (not include antenna connectors)
|
Antenna Connector
|
N/F
|
Optional |
● Surge Protector: Provides protection against power surges to ensure the safety of the device. ● IP67 Waterproof Version: We offer the NWD-01P, equipped with a weather-resistant enclosure and IP67 waterproof rating, specifically designed for outdoor use. ● Dual Unit for High Reliability: Incorporates dual units to enhance reliability and ensure continuous operation. ● OEM/Customization. All our products can be supplied fully customized with your brand and logo. We can even do customized form factors, enclosures and packages on your requirement. This OEM/Customization service enables you to have your own unique product in minimal time with no risk. ● AIS IQ data output and storage. We provide the capability to output and store IQ data for analysis purposes. Please feel free to contact us with your specific requirements. ● Integration of AIS, ADS-B, and ACARS: We offer integration of AIS, ADS-B, and ACARS receivers, commonly referred to as a 3A receiver. We can accommodate this configuration. ● We welcome any additional requirements you may have, and we are eager to collaborate with you to meet your needs!
|
